To STL

This function allows the user to convert lattice structure geometry to mesh-bodies in the STL format. This is mainly used to help the user visualize 3d representation of the rods and of the wire-radius and allows to iterate quickly.

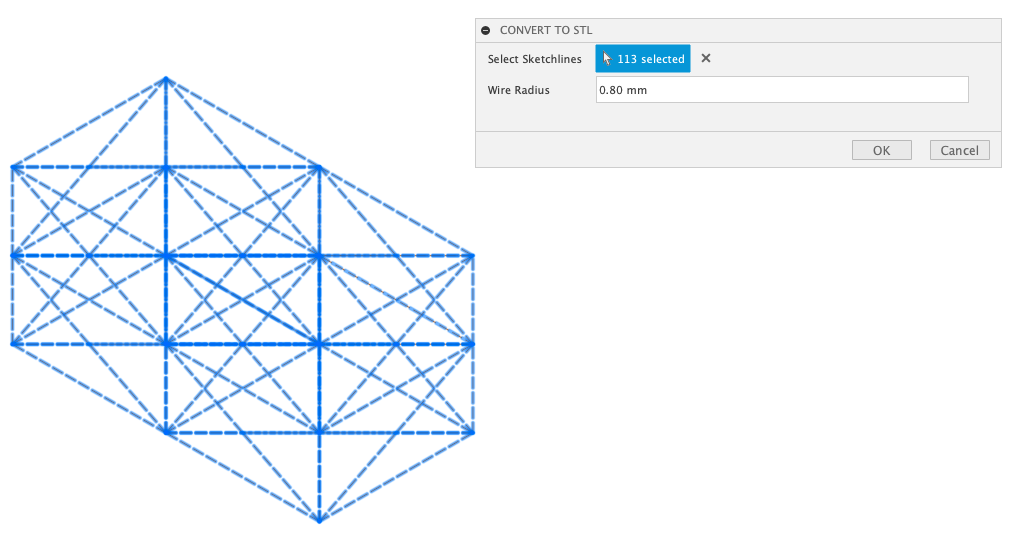

Usage

Selection

This allows the user to select the sketch-line to convert.

Wire radius

Allows for a selection of the wire-radius for the mesh body that will be generated. Input is done in mm.

warning

This operation can take a long time when converting large amount of bodies.
